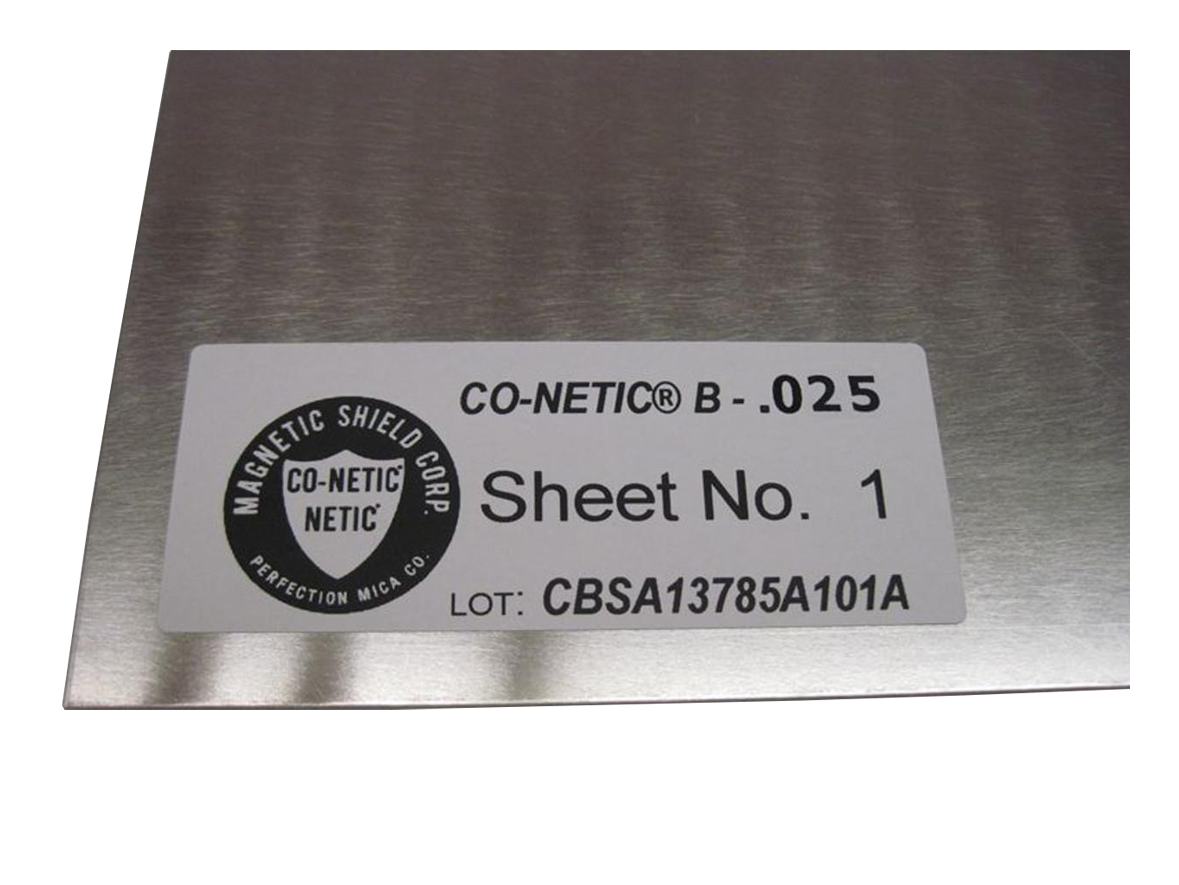

Co-NETIC® B 屏蔽板材

Co-NETIC® B 屏蔽板材的概况 -

Co-NETIC^® B 去应力退火板现在有更厚的规格可供选择，以补充我们薄的片材系列。Co-NETIC^® B 是一种合金，其配方与我们的 Co-NETIC^® AA 略有不同，其衰减特性介于 Co-NETIC^® AA 和 NETIC^® S3-6 之间。它在某些不需要 Co-NETIC^® AA 高衰减的应用中使用。我们提供从 0.014 in/0.36 mm 到 0.059 in/1.50 mm 厚度的规格，可根据需求提供其他定制厚度。

当需要中等渗透性时，Co-NETIC^® B 很适用。Co-NETIC^® AA 主要用于需要高衰减（高初始磁导率和高屏蔽效率）的低强度场，而 Co-NETIC^®由于其高磁饱和特性而经常应用于高强度场（强场）。去应力退火便于制造，必须作为最终工艺进行氢退火，以提高屏蔽性能。

符合 ASTM A753 合金 2 和 MIL-N-14411C Comp 3。
Co-NETIC® B 屏蔽板材的优势 +

➤ 应用于高强度磁场
➤ 去应力退火便于制造
➤ 具有中等渗透性
➤ 根据您的需求切割成更小的坯料
Co-NETIC® B 屏蔽板材的性能 +

Co-NETIC® B 屏蔽板材的指标 +

产品型号	厚度	宽度	长度
CBS014-23.22-39.37	0.014 in	23.22 in	39.40 in
CBS014-23.22-39.37	0.36 mm	590.0 mm	1000.0 mm
CBS020-24-15	0.020 in	24.00 in	15.00 in
CBS020-24-15	0.50 mm	610.0 mm	381.0 mm
CBS020-24-30	0.020 in	24.00 in	30.00 in
CBS020-24-30	0.50 mm	610.0 mm	762.0 mm
CBS020-24-39.4	0.020 in	24.00 in	39.4 in
CBS020-24-39.4	0.50 mm	610.0 mm	1000.0 mm
CBS025-12-15	0.025 in	12.00 in	15.00 in
CBS025-12-15	0.64 mm	305.0 mm	381.0 mm
CBS025-12-30	0.025 in	12.00 in	30.00 in
CBS025-12-30	0.64 mm	305.0 mm	762.0 mm
CBS025-12-60	0.025 in	12.00 in	60.00 in
CBS025-12-60	0.64 mm	305.0 mm	1524.0 mm
CBS025-12-120	0.025 in	12.00 in	120.00 in
CBS025-12-120	0.64 mm	305.0 mm	3048.0 mm
CBS030-24-15	0.030 in	24.00 in	15.00 in
CBS030-24-15	0.76 mm	610.0 mm	381.0 mm
CBS030-24-30	0.030 in	24.00 in	30.00 in
CBS030-24-30	0.76 mm	610.0 mm	762.0 mm
CBS030-24-39.4	0.030 in	24.00 in	39.40 in
CBS030-24-39.4	0.76 mm	610.0 mm	1000.0 mm
CBS030-24-60	0.030 in	24.00 in	60.00 in
CBS030-24-60	0.76 mm	610.0 mm	1524.0 mm
CBS030-24-78.7	0.030 in	24.00 in	78.70 in
CBS030-24-78.7	0.76 mm	610.0 mm	1000.0 mm
CBS059-23.8-15	0.059 in	23.80 in	15.00 in
CBS059-23.8-15	1.50 mm	605.0 mm	381.0 mm
CBS059-23.8-30	0.059 in	23.80 in	30.00 in
CBS059-23.8-30	1.50 mm	605.0 mm	762.0 mm
CBS059-23.82-39.37	0.059 in	23.80 in	39.40 in
CBS059-23.82-39.37	1.50 mm	605.0 mm	1000.0 mm
CBS059-23.8-60	0.059 in	23.80 in	60.00 in
CBS059-23.8-60	1.50 mm	605.0 mm	1524.0 mm
CBS059-23.8-78.7	0.059 in	23.80 in	78.70 in
CBS059-23.8-78.7	1.50 mm	605.0 mm	1000.0 mm
CBS098-5.9-15	0.098 in	5.90 in	15.00 in
CBS098-5.9-15	2.50 mm	150.0 mm	381.0 mm
CBS098-5.9-30	0.098 in	5.90 in	30.00 in
CBS098-5.9-30	2.50 mm	150.0 mm	762.0 mm
CBS098-5.9-60	0.098 in	5.90 in	60.00 in
CBS098-5.9-60	2.50 mm	150.0 mm	1524.0 mm
CBS098-5.9-78.7	0.098 in	5.90 in	78.70 in
CBS098-5.9-78.7	2.50 mm	150.0 mm	1000.0 mm
